Promote User Identity into the AMQP Protocol

This topic describes User Identity Promotion and how to promote credentials into the AMQP protocol for back-end servers or brokers that require additional information. AMQP user identity promotion uses AMQP 0-9-1 and Kaazing Gateway.

About User Identity Promotion

Typically, anonymous connections are not used in an enterprise application. Instead, users must provide credentials to access the AMQP message broker. However, because AMQP is a protocol, the credentials are supplied by the client. That means the credentials are prone to being manipulated.

User identity promotion enables the Gateway to securely propagate (promote) the user identity associated with a WebSocket connection or session from the client to the AMQP message broker. When a client connects to the Gateway, the client must first properly authenticate at the WebSocket transport layer before any AMQP messages are exchanged. Once the user’s identity and authentication are established, the Gateway can then promote that identity by injecting the user’s AMQP credentials into the protocol.

Thus, the AMQP message broker receives the credentials from the Gateway, which is a trusted source, and the credentials cannot be manipulated by users. The following figure shows a high-level overview of how protocol injection works with the Gateway and your AMQP message broker.

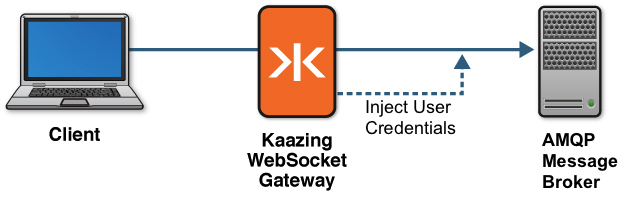

Promoting User Credentials into the AMQP Protocol

Figure: Promoting User Credentials into the AMQP Protocol

The AMQP message broker can perform its own authentication using the promoted identity. Note that it is not necessary for the credentials injected into the AMQP protocol to exactly match the user’s identity. You need to supply only what is required for the AMQP message broker. For example:

Implementing AMQP User Identity Promotion

The following procedure describes how to implement AMQP user identity promotion with the Gateway

Note: The steps in this topic assume that you already have a LoginModule specifically for the purpose of user identity promotion. The LoginModule (either one supplied from the Gateway or one that you have created) establishes the identity associated with this connection and authenticates it.

  1. In your login module, instantiate a new object of type com.kaazing.gateway.service.amqp.spi.AmqpPrincipal and add it to the Subject. This is typically done in the commit() method. For example:
      private Subject subject;

  @Override
  public void initialize(Subject  subject,
  CallbackHandler callbackHandler,
  Map<String, ?>  sharedState,
  Map<String, ?>  options) {
    this.subject = subject;
  }

  @Override
  public boolean commit() throws LoginException {
    // username, password, and subject are member variables
    // that must be set earlier in other parts of the
    // LoginModule implementation. In this method, we use
    // the username and password are used to create AmqpPrincipal
    // and add it to the Subject. The username and password will
    // then be automatically injected into the AMQP protocol.

    AmqpPrincipal principal = new AmqpPrincipal(username, password);
    subject.getPrincipals().add(principal)
    return true;   }
    Notes:
    • You should add only one AmqpPrincipal.
    • If you add more than one AmqpPrincipal principal, then the Gateway uses the first one that the Java iterator happens to return to the Gateway.

    See the AmqpPrincipal method in the SPI (Service Provider Interface) documentation for more information.

  2. Compile your LoginModule and include it in a JAR file that you put into the GATEWAY_HOME/lib directory.

    Note: These instructions assume the jar enterprise.gateway.amqp.spi.jar is added to the compile-time classpath of the login module.

  3. Start (or restart) the Gateway, and then connect a new client.

After authentication succeeds, the Gateway establishes a connection to the back-end server or broker. At this point, if AmqpPrincipal is available in the Subject, then the Gateway automatically injects the AMQP credentials specified AmqpPrincipal into the AMQP protocol.

Congratulations! You have completed implementation for AMQP user identity promotion with the Gateway.

Migrate to Kaazing Gateway 5.x

If you wish to migrate your LoginModule that uses AMQP Identity Promotion from Kaazing Gateway - AMQP Edition 4.x to Kaazing Gateway 5.x, you will need to follow the above the steps to change the package name from com.kaazing.gateway.amqp.server.spi.AmqpPrincipal to ` com.kaazing.gateway.service.amqp.spi.AmqpPrincipal`.
