Configuring Kerberos V5 Network Authentication Overview

Kaazing Gateway can be configured to accept a Kerberos service ticket (Ticket-Protected Gateway or TPG) from a browser client using a standard Negotiate challenge. Additionally, if you want to combine a TPG with a Ticket Granting Gateway (TGG) to proxy Kerberos protocol traffic from clients to a KDC, then you can configure the TPG to use the Application Negotiate challenge, which sends the Kerberos authentication protocol traffic over WebSocket to a TGG.

Before You Begin

This procedure is part of Configure Kerberos V5 Network Authentication.

How Does the Negotiate Authentication Scheme Work?

In this configuration, access to a Kerberos ticket protected service is achieved as shown in the following figure:

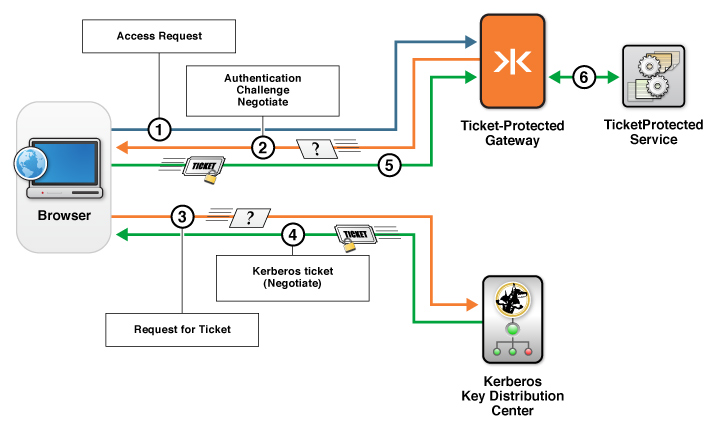

Negotiate authentication challenge to a Kerberos ticket protected service

Figure: Negotiate authentication challenge to a Kerberos ticket protected service

  1. A client running in the browser tries to access a ticket-protected service through a Ticket Protected Gateway (TPG).
  2. TPG sends the Negotiate authentication challenge to the browser. Negotiate is a standard feature that programs such as the web browser can leverage to request an encrypted Kerberos ticket.
  3. The browser requests the ticket directly from the KDC.
  4. The KDC returns an encrypted ticket. This negotiation is done over TCP or UDP.
  5. The browser responds to the challenge from the TPG with the encrypted ticket.
  6. If the ticket is valid, the client is granted access the ticket-protected service through a TPG.

How Does the Application Negotiate Authentication Scheme Work?

In this configuration, a TPG and a Ticket Granting Gateway (TGG) proxy Kerberos protocol traffic from clients to a KDC. (The TPG is configured with the Application Negotiate authentication scheme to challenge clients.) The configuration uses both a TPG and a TGG to send the Kerberos authentication protocol traffic over WebSocket to the Ticket-Protected Service, as shown in the following figure:

Application Negotiate authentication using a TPG and a TGG to proxy Kerberos protocol traffic from clients to a KDC

Figure: Application Negotiate authentication using a TPG and a TGG to proxy Kerberos protocol traffic from clients to a KDC

  1. A Kaazing Gateway client running in the browser tries to access a ticket-protected service through a Ticket Protected Gateway (TPG).
  2. The TPG sends the authentication challenge Application Negotiate to the browser. Application Negotiate is the Kaazing Gateway feature that allows a client to use the Kerberos authentication protocol over WebSocket.
  3. The client requests a ticket from the Ticket Granting Gateway (TGG).
  4. The TGG proxies the request to the KDC.
  5. The KDC returns an encrypted ticket (session ticket) to the TGG.
  6. The TGG returns the encrypted ticket to the browser.
  7. The Kaazing Gateway client responds to the challenge with the ticket.
  8. On successful validation of the ticket, access is granted and the client can access the ticket-protected service through Ticket-Protected Gateway (TPG).

In this scenario, by configuring Kaazing Gateway to use Kerberos, you enable your browsers and Kaazing Gateway clients to take advantage of your Kerberos security to authenticate with Kaazing Gateway.

Note: You can configure one Gateway as a TPG and another Gateway as a TGG or you can configure a single Gateway as both the TPG and TGG.
The following example shows a sample gateway-config.xml entry for using Kerberos security. In this example, a service with type kerberos5.proxy is added, accepts connections on wss://localhost:9000/kerberos5, and connects over tcp://kerberos.example.com:88 to the Kerberos Key Distribution Center. The authentication scheme is Application Negotiate, which tells the Gateway to challenge the Kaazing Gateway client for a Kerberos ticket. When the Gateway receives the ticket, it sends the ticket to the URI specified in the Kaazing Gateway client Kerberos challenge handler (see Notes below). A kerberos5 login-module includes sample configuration options, and is followed by the gss login-module that is required for SPNEGO-based Kerberos security.

Ticket Granting Gateway (TGG)
<service>
    <accept>wss://example.com:9000/kerberos5</accept>
    <connect>tcp://kerberos.internal.example.com:88</connect>
    <type>kerberos5.proxy</type>
    <cross-site-constraint>
        <allow-origin>*</allow-origin>
    </cross-site-constraint>
</service>
Ticket Protected Gateway (TPG)
<security>
     <realm>
        <name>demo</demo>
        <authentication>
            <http-challenge-scheme>Application Negotiate</http-challenge-scheme>
          </authentication>
        <login-module>
            <type>kerberos5</type>
            <success>required</success>
            <options>
                <useKeyTab>true</useKeyTab>
                <keyTab>/etc/krb5.keytab</keyTab>
                <principal>HTTP/localhost@LOCAL.NETWORK</principal>
                <isInitiator>false</isInitiator>
                <doNotPrompt>true</doNotPrompt>
                <storeKey>true</storeKey>
            </options>
        </login-module>

        <login-module>
            <type>gss</type>
            <success>required</success>
        </login-module>
    </realm>
</security>

Next Steps

Configure a Ticket Protected Gateway

Notes

See Also
