So, always look for a sturdy plane because spending a few bucks extra for quality is still worth adjusting blade smoothing plane difference. Otherwise, the adjustment process is the same as for Bedrock-style planes. What is a smoothing plane used for? Unlike the regular planes, the Japanese hand plane is pulled inwards rather than pushing it away. Smoothing plane is one the basic tools needed in a woodshop. For smoothing a surface like a gravel driveway that needs maintenance, the land plane should be set up so both blades contact the ground simultaneously.

If your bevel is not at the right angle, the edge is not square to the sides, or the cutting edge is nicked you'll need to regrind it.

This can be done on a grinder—an 8 inch slow-speed grinder is best for this work, a water-cooled, large wheel grinder even better—but good results can be achieved by working the blade on PSA sandpaper attached to a dead flat surface.

I start with 80 grit paper and work up to grit. Once the bevel is shaped to the proper angle, it, too, will need to be polished mirror smooth by working your way through the grits of whatever stone or sandpaper method you use. While some woodworkers are able to get good results by hand holding their blades, I highly recommend a honing guide to produce consistent, repeatable results.

If your restored plane has a blade that's in very rough condition, you may find it easier to purchase an aftermarket replacement blade. Not only will you start with a blade that's in premium condition, but it will be made of a more durable modern steel than was available when the older planes were originally made. This will need to be done on all blades, as even premium blades do not come with a micro bevel. Once again, start with your coarsest stone and stroke until you've established a thin line evenly across the tip of the blade.

Then proceed to the next higher grit. Finish by giving it a mirror polish with your highest stone. Do a careful job here; it's the micro bevel that meets the wood and produces those fine shavings. Finally, to get the sharpest edge, use David Charlesworth's ruler trick to put a very slight back bevel on the blade. Place a thin ruler lengthwise on the rear edge of your stone. Then, lay the blade on the stone bevel side up with the cutting edge off the far edge of the stone. While making back-and-forth sideways motions, carefully pull the blade onto the stone, then push it off again, repeating the process up to 10 times.

Do this using each of your stones, working to your highest grit. The result—a high polish on the extreme tip of the blade back that gives the sharpest edge. Once done, this step need not be repeated, though you may wish to refresh the back bevel with your finest stone each time you re-hone your microbevel. Now that your blade is sharpened and honed to perfection, you will ordinarily only need to refresh the micro bevel on your finest stone from time to time to keep it in top cutting condition.

Upgrading Your Plane Blade. If your blade is in bad shape—either badly nicked or rusted—you might be better off installing a new replacement blade. Several manufacturers offer replacement blades in a variety of widths to fit older Stanleys, Records and other brands.

Some blades are as much as 25 percent thicker than the original blades and use modern steels, including both A2 and 01 steel. Replacement chipbreakers are also available. Thicker blades reduce the likelihood of chatter and offer greater stability, but they may require adjustments to the frog or even the size of the mouth opening to accommodate the greater thickness. Available blades vary in thickness, so take this into account when purchasing.

A thickness of. Replacement chipbreakers in particular may be thicker than the original parts and may not fit older planes. Check with the manufacturer before ordering. Highland Woodworking carries Stanley replacement blades and chipbreakers. Set the Mouth Opening. While the lion's share of attention goes to getting a keen edge on the blade, several other steps will help you get the best from your plane. One is adjusting the mouth opening. On a bevel down plane, this is achieved by moving the frog forward or backward until the opening is slightly wider than the thickness of the desired shaving.

For smoothing planes, very fine shavings are the goal so you will want to set a very narrow gap. The opening can be wider for jointers and wider still for jack planes set up to take thick shavings when roughing out a board. Set the frog with the blade in place and slightly projected. On planes based on the Stanley Bedrock model, which includes Lie-Nielsen planes , adjust the opening by loosening the two screws on either side of the depth adjustment wheel.

Then advance or retract the frog as necessary by turning the large screw located between the two locking screws.

Once the frog is adjusted, loosely tighten the locking screws, remove the blade and sight down the frog to the mouth to confirm that the frog is perfectly square to the mouth. Then tighten the locking screws alternately and gradually until tight. Don't over tighten them to avoid stripping the threads. The more common Bailey-style planes have a slightly different screw arrangement—two locking screws located under the blade-chipbreaker assembly and an adjusting screw at the rear of the frog.

This means you may have to insert and remove the blade and chipbreaker assembly several times until you get the mouth set the way you want it. Otherwise, the adjustment process is the same as for Bedrock-style planes. Some newer planes—including block planes and other bevel-up planes—are built with adjustable mouths.

Usually the mouth is loosened by turning a lever at the base of the toe, then sliding the mouth assembly forward or backward to obtain the desired opening. Adjust the Chipbreaker. The chipbreaker on a bevel down plane should also be set so the distance from the blade edge is slightly more than the width of the shavings you intend to make. The distance will vary for individual planes set up to achieve different results.

Bevel up planes, of course, have no chipbreakers and need no such adjustment. Adjust the Cap Iron Pressure. The cap iron should hold the blade and chip breaker firmly to eliminate chatter but not so tightly that the depth adjuster can't be easily moved with two fingers.

With the lever loosened, tighten the screw until it holds the blade and chip breaker snugly in place, then snap the lever down and test the ease of adjustment. Once you've achieved the right amount of pressure, leave the screw alone and remove the iron by raising the lever.

Set the Depth Adjuster. Now we come to the business end of the adjustments, where the metal meets the wood. On most planes, you turn the depth adjustment wheel clockwise to deepen the cut and counterclockwise to retract it. However, there are exceptions. I recently came upon an old Crusader where the depth adjuster was turned in the opposite direction, so check your plane to see which rule applies.

Unfortunately, because of the unavoidable condition of backlash—excess play in the wheel adjustment—setting the blade depth so it does not slip in place requires a little more technique. The rule is to finish all depth adjustments with a downward, usually clockwise, movement of the wheel. Failing to keep downward pressure leaves the blade in a loose condition that lets it slip, and you can quickly lose the adjustment you just carefully set.

Thus, if the blade is set too deep, back it off by turning the wheel counterclockwise until the blade is fully retracted. The other is where the tool blade is exposed at front; here it lets you cut the wood at the corners.

The cutting depth of the blade is set with a fine feed screw and a secure depth lock stopper sets the cutting depth as per user requirement.

Fore Bench Hand Plane measures around mm in length and is used to flatten wood boards. The sole length of this tool prevents it from extending to the peaks and troughs of an uneven board. It only polishes over the peaks and rides past the troughs. Moreover, you can utilize the fore plane to square stock before carrying out edge jointing.

The tool is perfect for using on larger wood surfaces to get a smooth finish and for flattening as well. Fore Bench Plane is very much recommended for the cabinet makers and pro-grade woodworkers. The Fenced Plough Plane more or less resembles a router plane and is used to create dadoes and grooves on long wood boards.

The only difference between a router and plow plane is that the latter does grooving and others in the wood piece, while the former only cleans them, For instance, the plow tool can be utilized for fitting drawer bottoms to their frames.

This plow tool comes with an adjustable fence which uses the workpiece edge as a base to make perfectly parallel cuts. Lastly, this product package includes a set of blades of varied sizes for you to cut grooves at any required depth and width. The Japanese hand plane is again quite different from other smoothing tools; the first unique feature is its wooden body. The tool has a sharp, iron blade placed in an angular position, just like any other wood plane. However, the second notable feature is the way of using the tool.

Unlike the regular planes, the Japanese hand plane is pulled inwards rather than pushing it away. This opposite movement makes the cut more accurate, plus it reduces the fatigue feeling to quite an extent. Another good thing is being made of wood, there is less chance of the workpiece to get damaged compared to the smoothing planes made of solid iron. Mini Wooden Japanese Hand Plane is last on the list and yet a great tool for woodworking.

With this smoothing plane, you can make thin paper-like wood curls to give a glossy finish to the workpiece. Like the previous product, this tool is also made of high quality natural wood.

The sharp steel blade is substantially heavy, however it's responsive and can be set up easily. This smoothing tool is much recommended for the DIY hobbyists and small scale woodcrafters to sharpen wood for fine detailing.

Overall, the tool is ideal for minor clean up tasks, fine detailings in sharp spots, and crafting. You can use the tool single-handedly for minor wood tasks.

The tool blade is easy to fit and replace when required. Machine milling delivers a fine output of flattening and smoothing rough wood stocks. However, it could hardly deliver that smooth-as-glass finish which you can get using a well-tuned smoothing tool.

The only issue with the beginners is that they often become frustrated with their initial attempts to remove the milling stains with a handplane. There could be two supporting reasons behind this; one is that the tool is poorly manufactured and the other is the tool body if wooden.

So, you need to understand your requirement and based on your practical knowledge, the product has to be chosen. Here are some considerable factors that you should check while purchasing a quality hand plane for your woodshed. Else, if you are a newbie or run your own small DIY workshop , this guide will definitely be a great help to you. For cleaner and precision cuts without chatter, the tool parts should be adjusted to high tolerances and integrated perfectly.

You cannot get this level of accuracy on a mass-produced plane. The lever cap bears the chipbreak and tool iron assembly into position. Underside smoothing of the workpiece allows simpler adjustment of the cutting depth. Reforming the bottom and top allows polishing to slide over the chipbreaker rather than getting stuck.

A2 cryo steel made replacement blade will keep the edge longer compared to other types of steel blades. The frog holds the tool blade to the body. Loose contact may cause excessive vibration and chattering during the work. So, select the tool that has a good quality frog with tight fitting capacity. As the name suggests, a smoothing plane is used to smoothen the surface of wood.

This plane is used at the very end when the wood has been given its treatment as a finished product. Although both planes are bench planes but jack plane is pretty much like an all rounder plane where you can use it for multiple operations.

But a smoothing plane has a specific function which is to smoothen the wooden surface. A smoothing plane size is no. Choosing the best smoothing planes from the list can be difficult since they differ from one other and have their own set of unique features, pros and cons. Plus, each product is meant for a particular task only. If you are a seasoned woodworking professional, then keeping a collection of different smoothing planes is natural.

However, for the DIY crafters and others, it is suggested to choose the one that could serve your woodshop purposes. So, as per today's review, we recommend Stanley Shoulder and Chisel Plane for its considerable accuracy and reasonable price. Hope it helps. Happy woodworking! Your email address will not be published. Save my name, email, and website in this browser for the next time I comment. Table of Contents. Stanley Shoulder and Chisel Plane. Woodstock D Bullnose Plane.

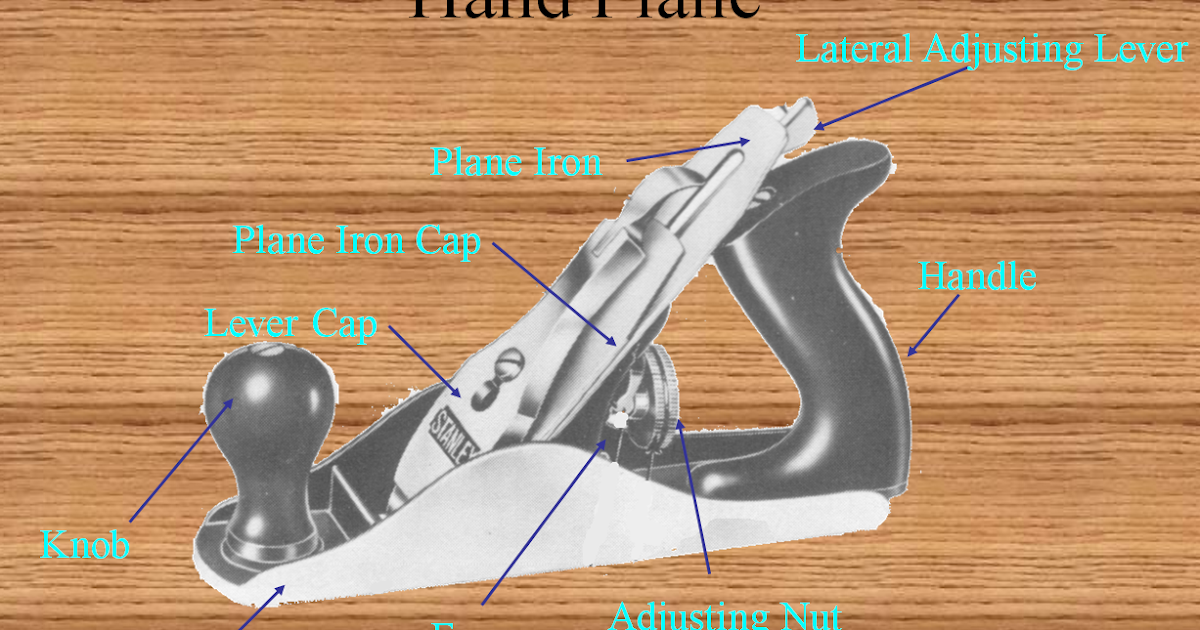

Jack Smoothing Bench Hand Plane. Stanley 7 Jointer Plane. Veritas Router Plane. Fore Bench Hand Plane. Fenced Plough Plane with 3 Irons. Wood Working Japanese Plane. Mini Wooden Japanese Hand Plane. Anatomy of Smoothing Plane. Lever Cap. Blade, or Iron.
