You'll be able to do a wider variety best cnc carving bits zip projects with a few carbide-tipped bits instead of buying a lot of best cnc carving bits zip for specific tasks. The friction of the bit against the compressed chips is enough to melt plastics and start wood on fire. Good for beginners! The direction of the cut is switched making the tip an upcutter. Ball: Use to create concave cuts and to hollow out areas Creates a cut similar to a U-gouge. End mills come in many carvong diameters. Steel bits tend to be specialized for certain tasks.

End mills come in many different diameters. You can choose an upcut or downcut. Are you carving large 3D contours or carvings? Ballnose aka contouring bits are fantastic for 3d carving think topographical maps and the grape relief on the sign at the wine shop.

You can carve with just the tip to get great detail and smooth contours or they can move a lot of material just like an end mill. For intricate 3d carving, consider a tapered ball nose bit like these. The slight angle of the cutting edge helps reduce the appearance of tool marks parallel to your material surface.

These are sometimes called v-carving bits, v-groove bits, or engraving bits. This is the only way to get a sharp grooved bottom on the inside of those roman numerals for your sundial. They are available in many sizes and angles. The most common and useful angles in order are 60deg, 90deg, and 30deg. These bits are made to skim the surface and leave a smooth flat finish.

I love to use it to flatten tabletops. Many manufacturers make bits especial for your material of choice. Bits for hardwood are designed to leave a clean edge. Bits for plastics are designed to avoid excessive melting. Aluminum cutting bits are designed to clear chips efficiently to avoid rewelding heated chips getting fused to the hot cutting tool. A good all purpose bit is a 2-flute up cutting spiral bit.

One important thing to remember when choosing a bit is that short, stout bits will produce cleaner cuts. Having excessively long bits invites tool vibration and deflection bending of your bit. Both of these conditions make for rough looking cuts and greatly shortened tool life. You will notice a huge decrease in that deafening noise as you use larger diameter bits. Generally speaking, the bit design you choose will be designed to cut fast or cut smooth.

Think of the difference between a chainsaw fast and a hand saw with fine teeth like a fret saw smooth. The more flutes Best Cnc Carving Bits 100 cutting edges that a bit has, the finer the cut. A single flute bit will be very aggressive and leave a rougher edge than a 4 flute bit will. On the other hand, you can push a single flute bit through your material much faster than a 4 flute bit. This is because making one cut per rotation allows for a more aggressive feed speed than a bit that makes 2, 3, or 4 cuts.

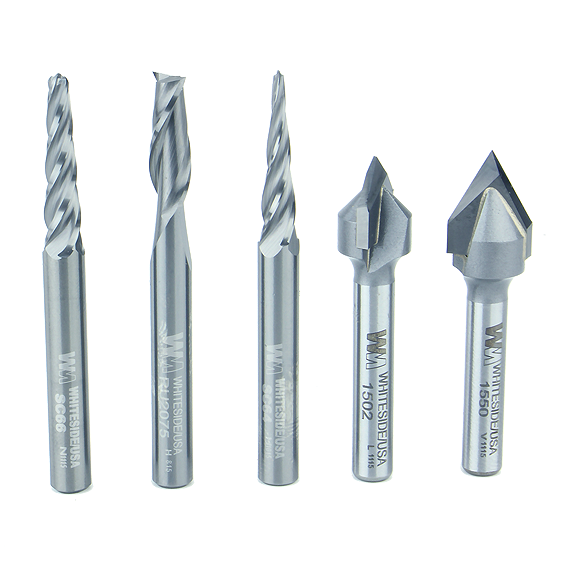

Chip clearance is also improved with fewer flutes meaning faster cuts. Spiral bits are a great multipurpose tool for lots of applications. I used 2-flute spiral bits for all of my work for at least the first year I used my ShopBot.

They offer a good balance of of cut speed and edge finish and can cut a variety of materials from wood and foam to plastics and even aluminum. Your choice are uncut, downcut, and compression a combination of upcut and downcut. Upcutting bits mounted in a CNC pull chips and your material up and away from the table.

They are great at clearing out chips from your cuts to avoid overheating your bits. They excel at making cuts all the way through material since they just slightly lift the material and scraps up into the end of the bit. This minimizes chip rewelding for materials prone to melting like acrylic and HDPE. Use upcut bits for a clean finish on the bottom surface of your material when cutting all the way through your material. For all toolpaths, this bit generates rough edges on the top surface of your material.

There will likely to be a lot of fringe at the top of your material, on top surface, also known as tearout. For all toolpaths, these bits leave a clean surface on the top side of your material. They leave a r ough finish on the bottom surface of the material on thru-cuts. The downward motion of the flutes helps hold material down against the waste board.

Due to its surface finishing, these are our favorite bits for creating pockets for an inlay or any cut that doesn't go all the way through your material. These bits don't pull up on your material or push your material downwards. Excellent for minimizing chipping and fraying on the top surface of the material. These are good to keep in your arsenal as general purpose bits. Upcut flutes on the bottom of each flute. This pulls chips away from the stock material as the bit generates new toolpaths.

Downcut flutes on top of each flute. This acts as a finishing path to leave a smooth surface on the top of the stock material surface, removing any tear out or fringe generated by the upcut flutes.

These are the best bits for laminated materials or thru-cuts, because these bits leaves a good finish on the top and bottom of the material. Bit End The end of the bit impacts what the bottom of the toolpath looks like. Fishtail Bit end has flutes that produce a flat surface with a clean edge. Fishtails Cnc Carving Bits Canada Ip are good for plunge cutting. This also makes them an excellent choice for thinner materials, because they are less likely to splinter or damage thinner materials.

Use this bit to make pockets with flat bottoms. Versatile for a lot of different material types, but especially plastics. Ball Nose Bit end is rounded, which produces a path with curved edges. This makes them great for sculpting and 3D modeling i. V-Bit These unique bits have a V-shape on the end for carving grooves into your material. Examples of v-carved toolpaths include tapered edges, varying widths and depths in the same toolpath, and beveled edges Typically used for sign-making.

Use bits with different angles for different levels of Best Wood For Cnc Router Carving Test detail. The lower the degree, the more detail you can get i. V-bits are great for hardwoods.

Only use a v-bit on plywood if you are running a test job, as the v-bit can cause severe tear out and splintering.

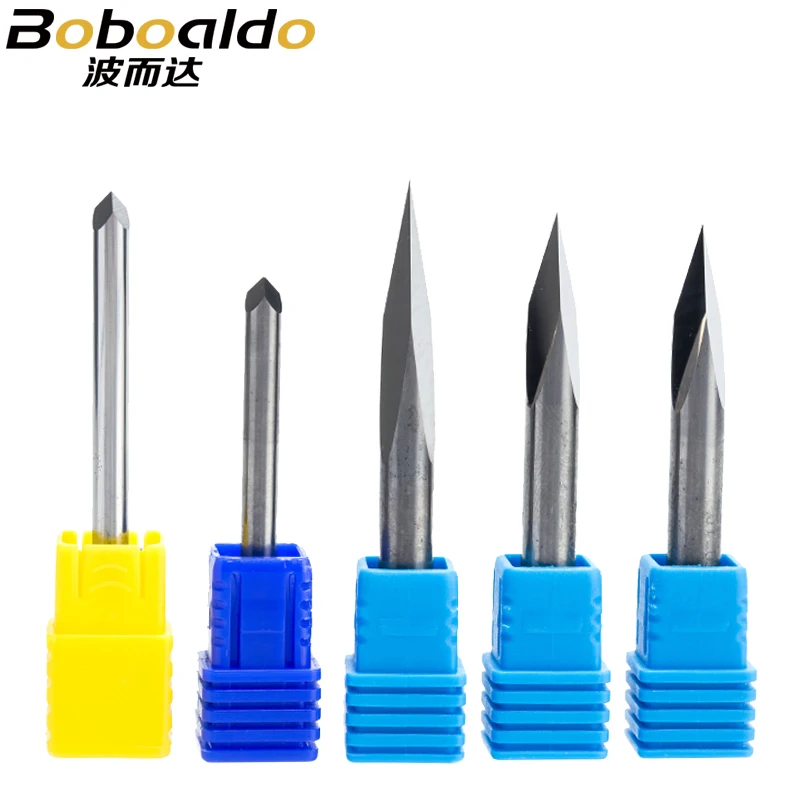

Engraving Engraving bits are essentially v-bits with a very, very low degree. On our site, you'll find engraving bits as low as 30 degrees. These bits are incredibly fragile. Flexible shaft machines accept any of these diameters when equipped with the appropriate collet. Use the largest bit you comfortably can for the area you are carving. When inserting the bit into your rotary power carver, make sure the shank is as far into the tool as it will go.

Bits are grouped into a few general shapes. The larger the head, the more wood it will remove. Larger bits are generally used for roughing out a piece and smaller bits are used to add details. Many of the shapes have very specific purposes, but we tend to use the ball, cylinder, flame, and pear-shaped bits the most. Bits are made from a variety of materials. These materials vary greatly in cost, cutting speed, durability, and the smoothness of the surface they leave behind.

The most coarse and longlasting bits feature aggressive carbide points bonded to a metal shaft. These bits remove wood fast, but leave a rough surface. The finest cutting bits are man-made stones which produce a smooth surface. Coarse bits work best at slower rpm and finer bits work best at higher rpm. Both types of drills have great heat resistance and life. Over time, you will accumulate a number of bits to meet your carving needs.

It makes sense to keep the bits sharp and in good condition in order to protect your investment. We recommend the following tips to prolong the life of your bits:.

Every carver has his or her own favorite bits. Experiment with bits of different sizes and materials to get a good feel for their capabilities. When selecting a bit for a specific purpose, power carver Jack Kochan asks himself the following questions to help determine which bit to choose:.
